  • Zinc alloy hinge
  • Product Information

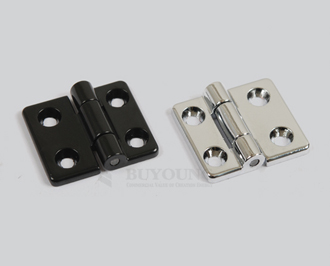

    Zinc alloy door hinge used on the door of a cabinet or an electrical enclosure or a profile

    Product Description
    1. Almost no looseness leaving no gaps in the hinge
    2. Clean surface and smooth movement
    3. Features a stainless joint for outstanding durability
    4. Applicable to various types of products
    5. Materials: Zinc Alloy(ZDC II)
    6. Surface treatment: Chrome Plating(CR), Chrome Velour Plating(CV),
        Black Coated(BK)
    7. Dimensions: 28mm * 25mm * 2.3mm (width * length * thickness)
    8. Usage: Cabinets, electrical enclosures, profiles, cases, boxes,
        machinery and other various items
    9. If you want other zinc alloy door hinge products,
        please visit|8.

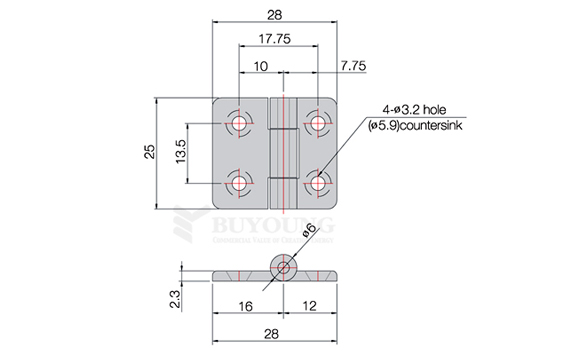

  • Zinc alloy hinge_drawing
