Product Information

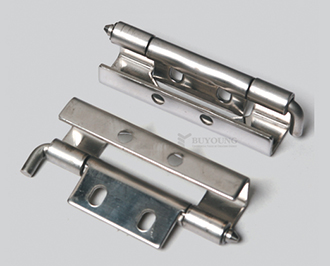

Hinge used on the door of a cabinet or electrical enclosure or machine equipment
Product Description
1. Does not ruin the exterior appearance of a box as the hinge is
affixed inside the box
2. Easy to remove a door as hinge pins are easily removable.
3. The stop angle of the hinge is 120 degrees
4. Materials: Stainless steel
5. Surface treatment: Barrel polishing

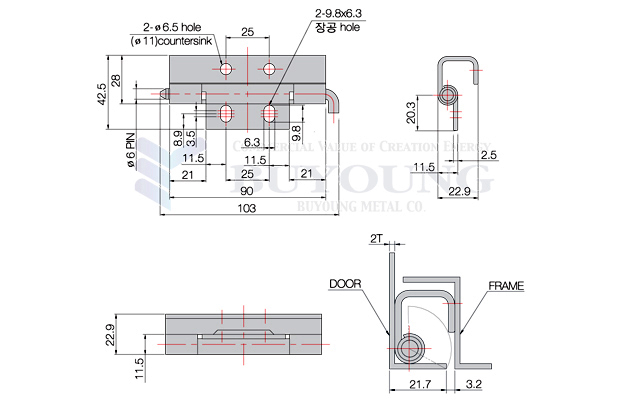

6. Dimensions: 42.5mm * 103mm * 22.9mm
(width * length * thickness)
7. Screw holes: 2 of 6.5mm (11mm countersink) holes,
2 of 9.8*6.3mm oblong holes
8. Distance between the centers of the horizontal screw holes: 25mm
9. Usage: Cabinets, electrical enclosures, cases, boxes,
machinery and other various items
10. If you want other cabinet door inner hinge products,
please visit http://www.newbuyoung.com/eng/product.html?cat=5|20.
