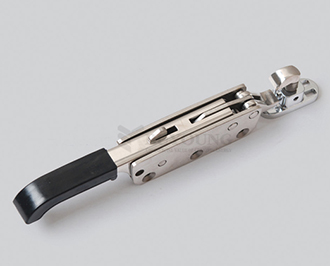

  • Side handle for airtightness
  • Product Information
    Closed door handle used on the door of a cabinet, electrical enclosure or box or manufacturing equipment and facilities

    Product Description
    1. Features a lock button on the handle
    2. Used for a door that is subjected to transportation,
        vibration or pressure
    3. Soft and powerful sealing
    4. Features a stainless steel body and handle for outstanding
        acid resistance and rust resistance
    5. Smart looking design and excellent product quality
    6. Materials: Body and Handle - Stainless steel,
        Ratchet - Zinc alloy (ZDC II)
    7. Surface treatment: Body and Handle - Barrel polishing,
        Ratchet - Chrome plating (CR)
    8. Dimensions; 212.9mm (excluding the length of the ratchet) *
        26.7mm * 44.6mm (length * width * height)
    9. Usage: Cabinets, electrical enclosures, cases, boxes, machinery,
        manufacturing equipment and facilities and other various items
    10. If you want other closed side door handle products,
          please visit http://www.newbuyoung.com/eng/product.html?cat=16|4.

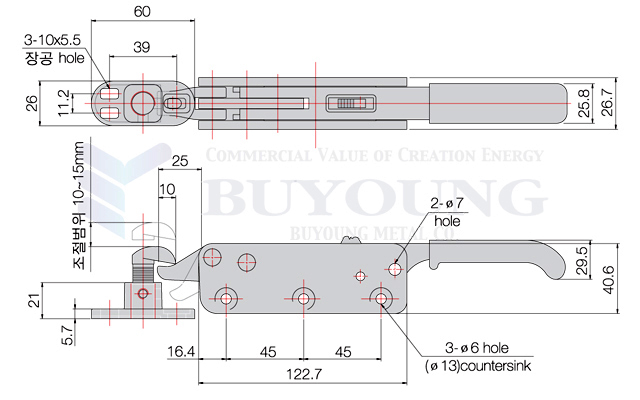

  • Side handle for airtightness_drawing
