  • Industrial refrigerator handle
  • Product Information
    Industrial refrigerator door handle used on the door of an industrial refrigerator or storage or manufacturing equipment and facilities

    Product Description
    1. Crimp-type door handle
    2. Appropriate for the strong sealing of a small door
    3. Smart looking design and excellent product quality
    4. Materials: Zinc alloy (ZDC II)
    5. Surface treatment: Matte chrome plating (CV)
        Band: 28mm * 52.5mm * 25mm (width * length * height)
    6. Screw holes: 4 of 5.2mm (9.7mm countersink) holes
        Band: 4 of 5mm (10mm countersink) holes
    7. Distance between the centers of the vertical screw holes: 16.8mm
        Band: 13mm
    8. Distance between the centers of the horizontal screw holes: 40.2mm
        Band: 40.5mm
    9. BYRD211-K Version with a key device: BYRD211-K
    10. Usage: Industrial refrigerators, storages, cabinets,
          electrical enclosures, cases, boxes, machinery,
          manufacturing equipment and facilities and other various items
    11. If you want other industrial refrigerator door handle products,
          please visit http://www.newbuyoung.com/eng/product.html?cat=16.

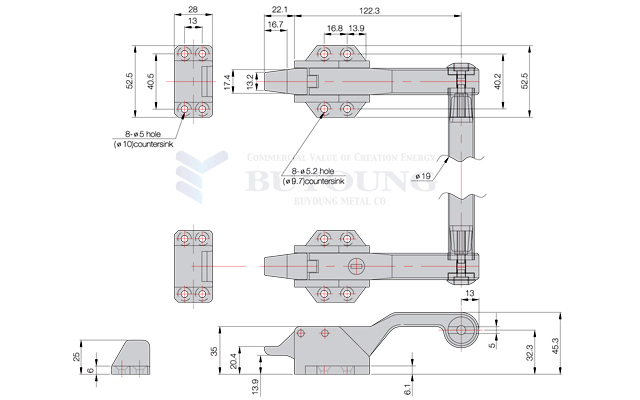

  • Industrial refrigerator handle_drawing
