  • Semiconductor magnetic catch
  • Product Information

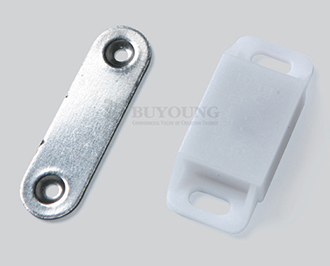

    Magnetic catch used on the door of a a cabinet, electrical enclosure or box, or manufacturing equipment and facilities

    Product Description
    1. A permanent neodymium magnet is installed inside
    2. Strong magnetism
    3. Does not cause scratches or dusts as the entire handle is
        strongly sealed
    4. Materials: Case - Acetal, Inside - Neodymium magnet,
        Band - Stainless steel

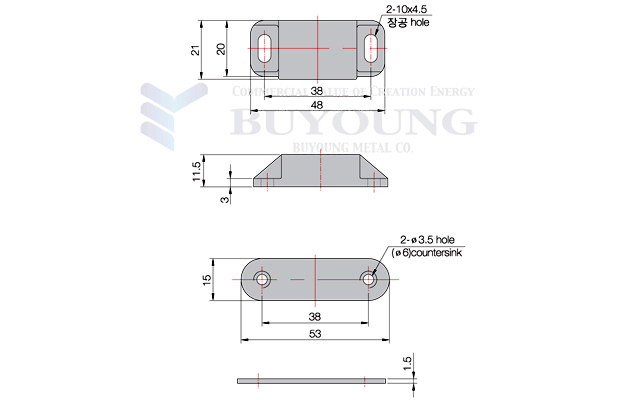

    5. Dimensions: 48mm * 21mm * 11.5mm(length * width * height)
         Band: 53mm * 15mm * 1.5mm(length * width * height)
    6. Screw holes: 2 of 10*4.5 oblong holes
        Band: 2 of 3.5mm (6mm countersink) holes
    7. Distance between the centers of vertical screw holes: 38mm
    8. Usage: Semiconductor equipment and facilities, electrical enclosures,
        cases, boxes, machinery and other various items
    9. If you want other magnetic catch products, please visit
        http://www.newbuyoung.com/eng/product.html?cat=9|1.
