Product Information

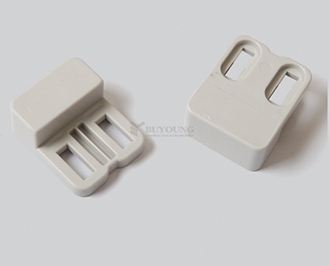

Magnetic catch used on the door of a a cabinet, electrical enclosure or box, or manufacturing equipment and facilities
Product Description
1. Able to fasten only with magnets as it is an integrated
magnet-guide typee
2. Easy to install and disassemble
3. Minimizes the generation of scratches or dusts as
the entire handle is strongly sealed
4. Features an ABS body for outstanding durability
5. Smart looking design and excellent product quality
6. Materials: ABS

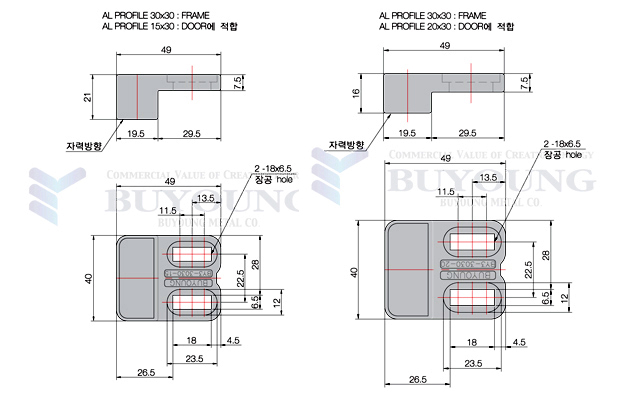

7. Dimensions:
- BY3-3030-15 : 49mm* 40mm* 21mm (width * bar diameter * height)
- BY3-3030-20 : 49mm* 40mm* 16mm (width * bar diameter * height) 8. Surface treatment: Gray
9. Screw holes: 2 of 18*6.5 oblong holes
10. Distance between the centers of vertical screw holes: 22.5mm
11. Usage: Aluminum profile equipment and facilities,
 cabinets, electrical enclosures, cases, boxes,
 machinery and other various items
12. If you want other profile magnetic catch products, please visit
http://www.newbuyoung.com/eng/product.html?cat=9|8.
