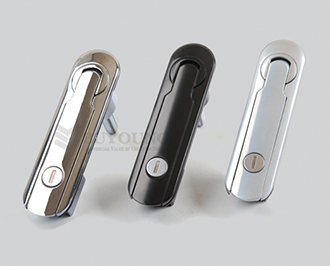

  • Swing handle
  • Product Information
    Swing cabinet door handle used on the door of a cabinet, electrical enclosure or box, or manufacturing equipment and facilities

    Product Description
    1. Door handle of a cabinet or electrical enclosure
    2. Available for both the left and the right side (Use direction
        can be changed by turning the fixing plate and the control panel
        upside down)
    3. Features a packing on the back side for outstanding waterproofing
    4. Minimizes projections
    5. Smart looking design and excellent product quality
    6. Materials: Body - Zinc alloy (ZDC II), Back fixing bracket - Iron
    7. Surface treatment: Body - Satellite chrome plating (MZCr),
        Chrome plating (CR) Black color coating (BK)
        Back fixing bracket - Zinc alloy (depth)
    8. Dimensions: 35.5mm * 136.1mm * 86.3mm (width * length * height)
    9. Fixing hole dimensions: 29mm * 109mm
    10. Version with a key device: BYM-502K
    11. Usage: Cabinets, electrical enclosures, panel boards,
          control panels, cases, boxes, industrial machinery,
          manufacturing equipment and facilities and other various items
    12. If you want other swing cabinet door handle products, please visit
          http://www.newbuyoung.com/eng/product.html?cat=2|4.

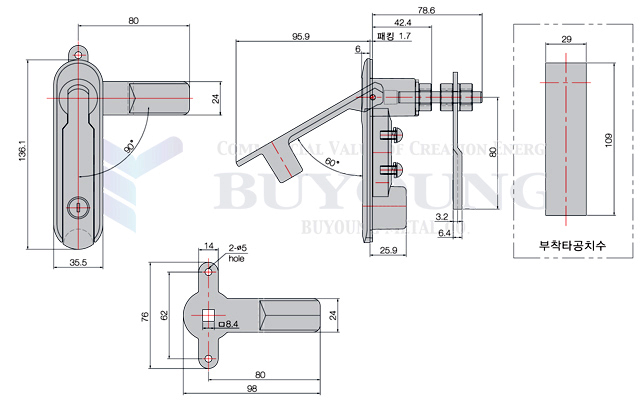

  • Swing handle_drawing
