  • Crimp-type door handle
  • Home  >  Product Introduction  >  Lock Handle  >  Crimp-type door handlee
  • Crimp-type door handle
  • Product Information

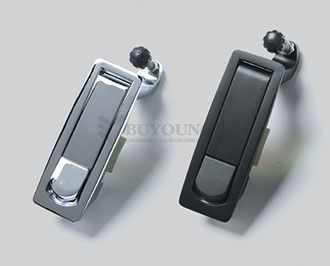

    Crimp-type door handle used on the door of a cabinet, electrical enclosure or box, or manufacturing equipment and facilities

    Product Description
    1. Door handle of a cabinet or electrical enclosure
    2. M5 screws with lock washer are used for installation and assembly
    3. Smart looking design and excellent product quality
    4. Materials: Body - Zinc alloy (ZDC II),
        Screws and lock nuts - Stainless steel
        Back fixing bracket - Iron
    5. Surface treatment: Body - Chrome plating (CR),
        Black color coating (BK)
    6. Dimensions: 33.8mm * 93mm (width * length)
    7. ixing hole dimensions: 25mm * 86mm (width * length)
    8. Usage: Cabinets, electrical enclosures, cases, boxes, machinery,
        manufacturing equipment and facilities and other various items
    9. If you want other crimp-type door handle products, please visit
        http://www.newbuyoung.com/eng/product.html?cat=2|1.

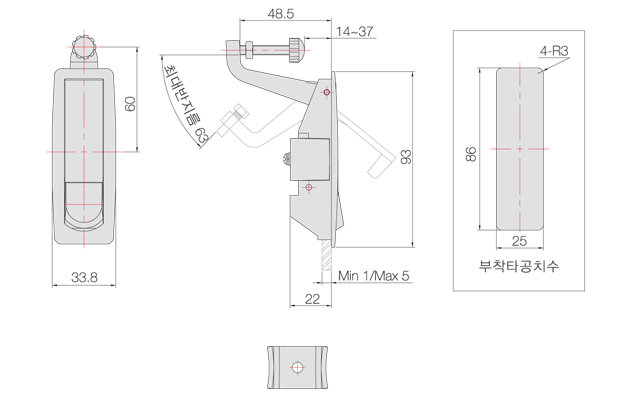

  • Crimp-type door handle_drawing
