  • Removable hinge
  • Product Information
    Hinge used on the door of a cabinet or electrical enclosure or machine equipment

    Product Description
    1. Male and female screws are removable by a separation method
    2. Both the left door hinge and the right door hinge are available
    3. Features a sophisticated design and simple appearance
    4. Materials: Zinc alloy (ZDC II)
    5. Surface treatment: Chrome plating (CR), Black color coating (BK)
    6. Dimensions: 32.5mm * 63mm * 17.5mm (width * length * thickness)
    7. Screw holes: 4 of 5mm holes
    8. Distance between the centers of the vertical screw holes: 17.5mm
    9. Distance between the centers of the horizontal screw holes: 51mm
    10. Usage: Cabinets, Electrical Enclosures, Cases, Boxes,
          Machinery and other various items
    11. If you want other removable cabinet door hinge products,
          please visit http://www.newbuyoung.com/eng/product.html?cat=5|9.

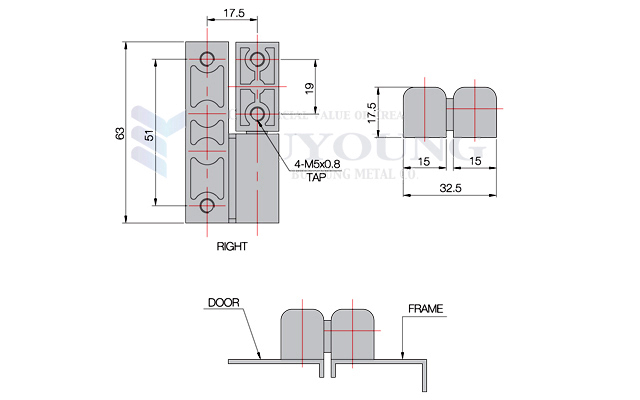

  • Removable hinge_drawing
