  • Stainless hinge
  • Home  >  Product Introduction  >  Hinge  >  Stainless hinge
  • Stainless hinge
  • Product Information

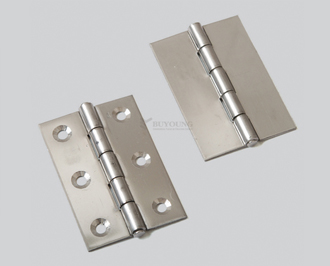

    Stainless steel door hinge used on the door of a cabinet or an electrical enclosure or a profile

    Product Description
    1. Made of stainless steel for outstanding hardness
    2. Stainless steel body ensures outstanding durability
    3. Features an acid-resistant stainless steel body
    4. Applicable to various types of products
    5. Materials: Stainless steel
    6. Surface treatment: Barrel polishing
    7. Dimensions: 52mm * 75mm * 1.8mm (width * length * thickness)
    8. Usage: Cabinets, electrical enclosures, cases, boxes,
        machinery and other various items
    9. BYHSN1875 is a version for welding with the same dimensions.
    10. If you want other stainless steel door hinge products,
          please visit http://www.newbuyoung.com/eng/product.html?cat=5|17.

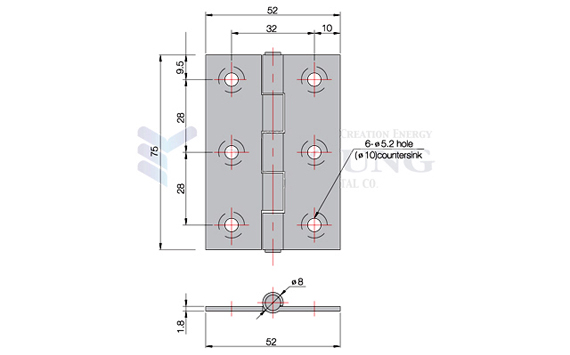

  • Stainless hinge_drawing
