- Corner hinge
- Home > Product Introduction > Hinge > Corner hinge
-
Product Information

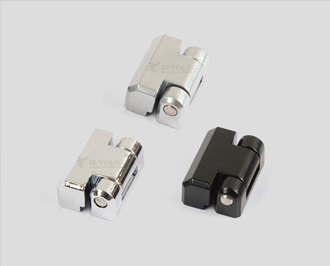

Stainless steel door hinge used on the door of a cabinet or an electrical enclosure or a profile
Product Description
1. Features a stainless steel joint for outstanding hardness
2. Its stainless steel joint ensures outstanding durability
3. Applicable to various types of doors
4. Materials: Zinc Alloy (ZDC II)
5. Surface treatment: Satellite chrome plating (MZCr)

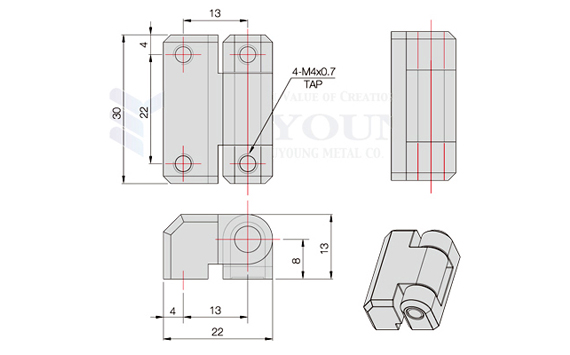

6. Dimensions: 22mm * 30mm * 13mm (width * length * thickness)
7. Distance between the centers of the vertical screw holes: 22mm
8. Distance between the centers of the horizontal screw holes: 13mm
9. Usage: Cabinets, electrical enclosures, cases, boxes,
machinery and other various items
10. If you want other corner cabinet door hinge products,
please visit http://www.newbuyoung.com/eng/product.html?cat=5|10.
