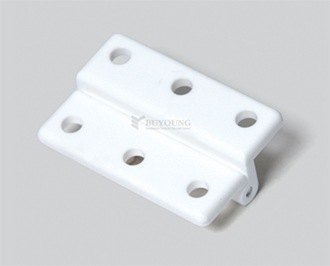

  • Plastic hinge
  • Product Information
    Hinge used on the door of a cabinet or electrical enclosure or machine equipment

    Product Description
    1. Features outstanding mechanical properties, heat resistance,
        cold resistance and electrical properties in a balanced manner
    2. Made of a transparent, self-extinguishable and most widely used
        material among engineering plastic materials
    3. Materials: Polycarbonate
    4. Surface treatment: Ivory
    5. Dimensions: 40mm * 60mm * 3.8mm (width * length * thickness)
    6. Screw holes: 6 of 6mm holes
    7. Usage: Cabinets, electrical enclosures, cases, boxes,
        machinery and other various items
    8. If you want other plastic cabinet door hinge products,
        please visit http://www.newbuyoung.com/eng/product.html?cat=5|6.

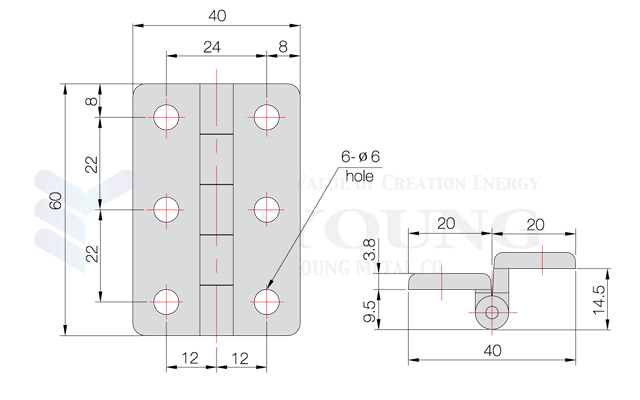

  • Plastic hinge_drawing
