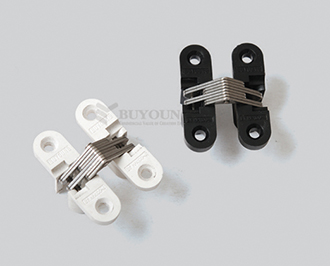

  • Buried type hinge
  • Product Information
    Hinge used on the door of a cabinet, electrical enclosure or furniture or machine equipment

    Product Description
    1. Features a stainless steel shaft (spring) for outstanding hardness,
        durability and rust resistance
    2. Stop angle of 180 degrees
    3. Does not ruin the exterior appearance after installation as it is a
        buried type hinge
    4. Materials: Body - Acetal, Shaft (spring) - Stainless steel
    5. Surface treatment: Body - Black, White
    6. Dimensions: 33.5mm * 44mm * 24.1mm
        (width * length * thickness)
    7. Screw holes: 4 of 4.2mm (6.8mm countersink) holes
    8. Usage: Cabinets, electrical enclosures, furniture, cases, boxes,
        machinery and other various items
    9. If you want other buried type cabinet door hinge products,
        please visit http://www.newbuyoung.com/eng/product.html?cat=5|19.

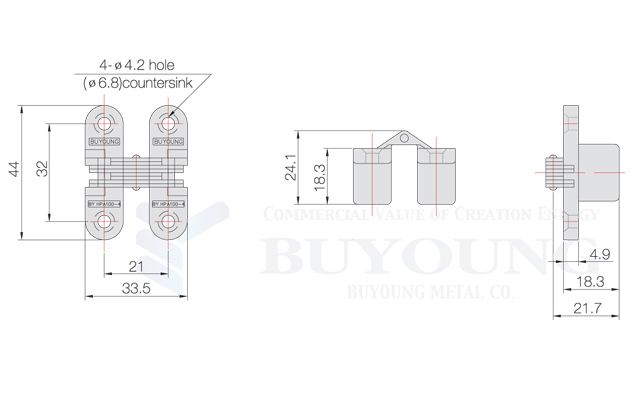

  • Buried type hinge_drawing
