Product Information

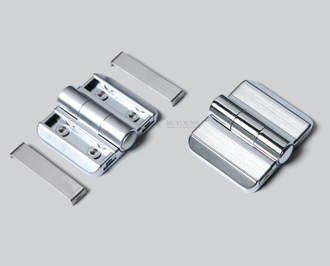

Hinge used on the door of a cabinet or electrical enclosure or machine equipment
Product Description
1. Classified depending on a specific angle at which it stops opening
(45 degrees, 90 degrees, 135 degrees, 180 degrees)
2. A product that stops opening at every existing angle (45 degrees,
90 degrees, 135 degrees, 180 degrees) is also available.
3. A product not featuring a function that stops opening at
a specific angle as general stop hinge products do is also available.
4. A stainless steel cover is applied after fastening bolts or screws
cto hide them
5. Features a sophisticated design and simple appearance
6. Material: Body - Zinc alloy (ZDC II), Cover - Stainless steel
7. Surface:
treatment- Chrome plating (CR), Matte chrome plating (CV)
Cover - Hairline

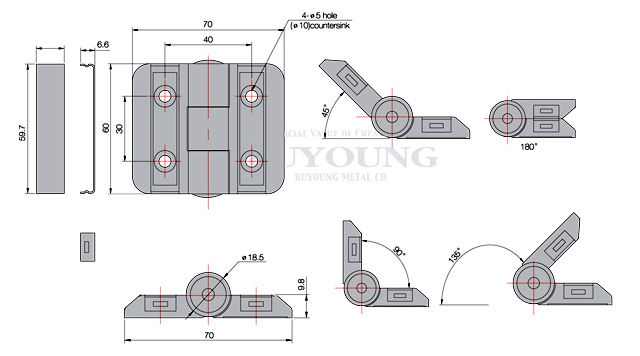

8. Dimensions: 70mm * 60mm * 9.8mm (width * length * thickness)
9. Screw holes: 4 of 5mm holes (10mm countersink)
10. Distance between the centers of the vertical screw holes: 40mm
11. Distance between the centers of the horizontal screw holes: 30mm
12. Usage: Cabinets, electrical enclosures, cases, boxes,
machinery and other various items
13. If you want other cabinet door hinge products that
stop opening at angles other than specified above,
please visit http://www.newbuyoung.com/eng/product.html?cat=5|1.
