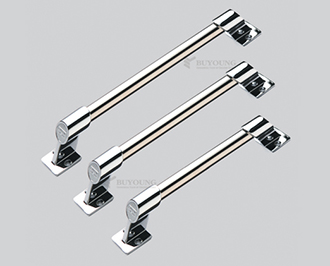

Product Information
Stainless steel pipe door knob used on the door of a sliding door, sterilizer, dryer, semiconductor clean room, garbage box and special purpose door
Product Description
1. Used for the door of a sterilizer, dryer,
semiconductor clean room, etc.
2. Minimizes projections from the plate using buried type design
The pipe length can be customized.
3. Smart looking design with chrome plating and excellent
product quality
4. Materials: Pipe - Stainless steel,
Fixing bracket - Zinc alloy (ZDC II)
5. Surface treatment: Pipe - Polishing,
Fixing bracket - Chrome plating (CR)

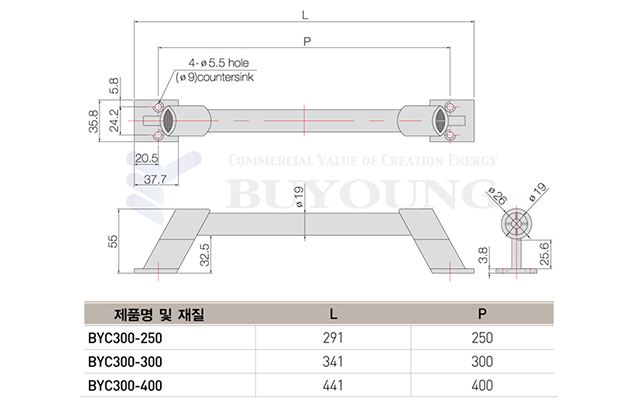

6. Dimensions: 341mm * 35.8mm * 55mm (width * length * height)
Pipe diameter; 19mm
7. Screw holes: 4 of 5.5mm (9mm countersink) holes
8. Distance between the centers of horizontal screw holes: 300mm
9. Usage: Sliding doors, sterilizer doors, dryer doors,
semiconductor clean room doors, cabinet doors, garbage box doors,
special purpose doors, Industrial machinery, manufacturing
equipment and facilities and other various items
10. If you want other stainless steel pipe cabinet
knob handle products, please visit
http://www.newbuyoung.com/eng/product.html?cat=4|9.
