  • Spring box pull handle
  • Home  >  Product Introduction  >  Pull Handle  >  Spring box pull handle
  • Spring box knob
  • Product Information

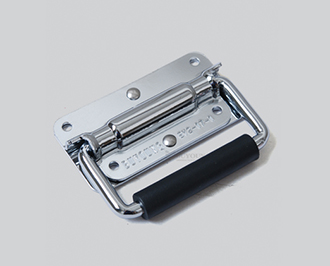

    Spring box case door knob used on the door of a cabinet, electrical enclosure or box, or manufacturing equipment and facilities

    Product Description
    1. The knob automatically goes down when not in Usage as a spring is
        built in the knob
    2. The built-in spring removes noise caused by vibration
    3. Smart looking design and excellent product quality
    4. Materials: Iron
    5. Surface treatment: Chrome plating\

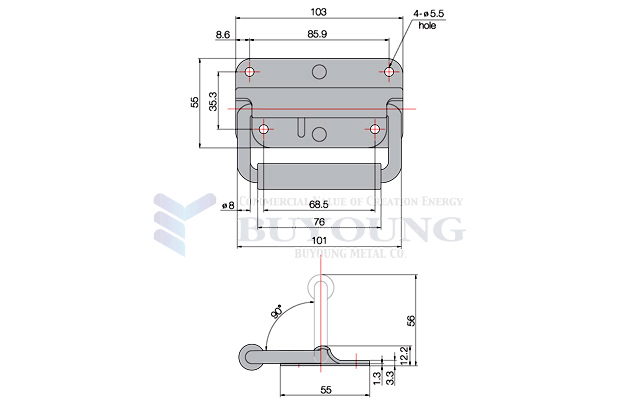

    6. Dimensions: 103mm * 55mm * 12.2mm (56mm)
        (length * width * height)
    7. Screw holes: 4 of 5.5mm holes
    8. Distance between the centers of horizontal screw holes:
        85.9mm, 68.5mm
    9. Distance between the centers of vertical screw holes: 35.3mm
    10. Usage: Usage: Broadcasting equipment boxes, cabinets, electrical
          enclosures, panel boards, control panels, cases, boxes,
          industrial machinery, manufacturing equipment and
          facilities and other various items
    11. If you want other box case door knob products, please visit
          http://www.newbuyoung.com/eng/product.html?cat=4|11.
